Dhan

Dhan is a new-generation financial services platform that empowers traders and investors to build, automate, and execute their trading strategies. Through DhanHQ APIs, users can connect their Dhan account with tools like Tradeboard and create their own trading automation setup that is fully self-hosted and secure.

---

Overview

Dhan provides two main types of APIs:

API Type	Features	Cost
Trading APIs	Order Placement, Position Management, Portfolio & Funds, Order Postbacks, Statement Reports	Free of Cost
Data APIs	Real-time Prices, Historical Data (5 years), 20-Level Market Depth, Option Chain APIs, Expired Options Data	₹499/month or ₹399/month (₹4,788/year)

---

Steps for Integration

Step 1: Log in to Dhan Web Portal

Visit web.dhan.co and sign in to your Dhan account.

---

Step 2: Access DhanHQ APIs

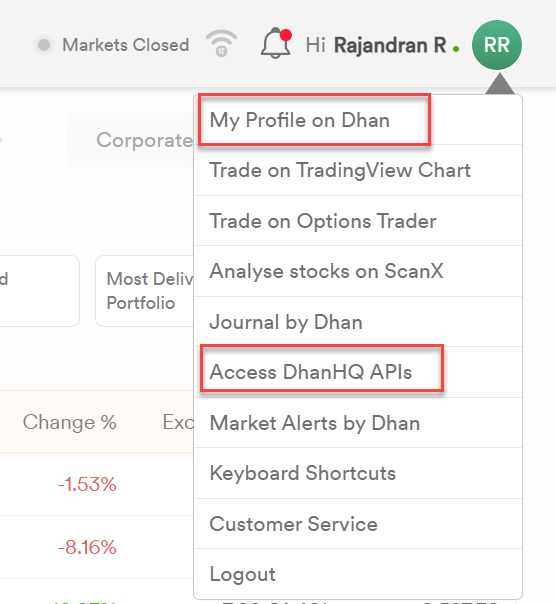

Click on your profile icon at the top-right and select “Access DhanHQ APIs”.

From this page, you can:

• Generate API Keys
• Enable TOTP
• Setup Static IP
• Manage Trading & Data APIs

---

Step 3: Switch to API Key Mode

By default, DhanHQ opens in Access Token mode.

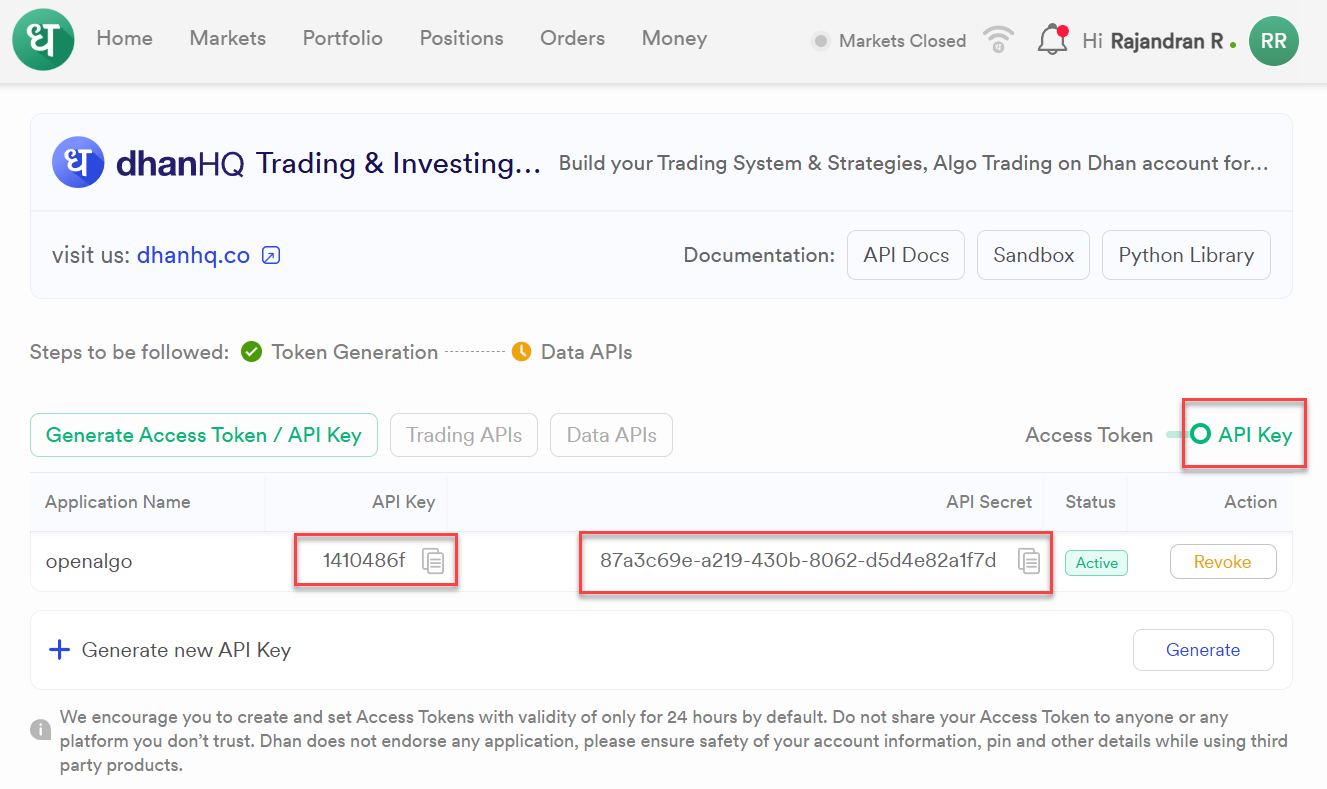

Use the toggle on the top-right to switch to API Key Mode.

---

Step 4: Generate a New API Key

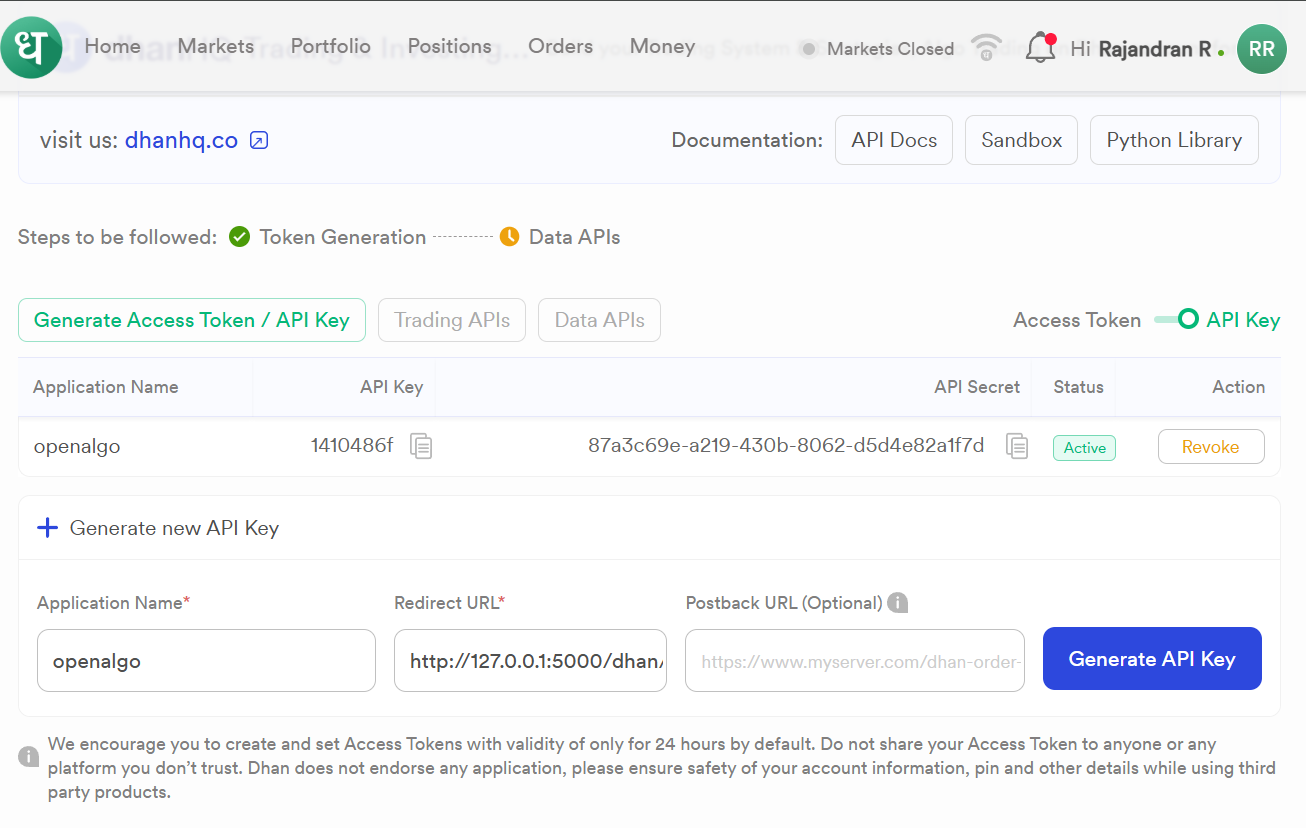

1. Under Generate new API Key, enter:
   • Application Name: e.g. tradeboard
   • Redirect URL: http://127.0.0.1:5000/dhan/callback
   • (Optional) Postback URL if your system supports order postbacks
2. Click Generate API Key.
3. Copy your:
   • API Key
   • API Secret

---

Step 5: Retrieve Client ID

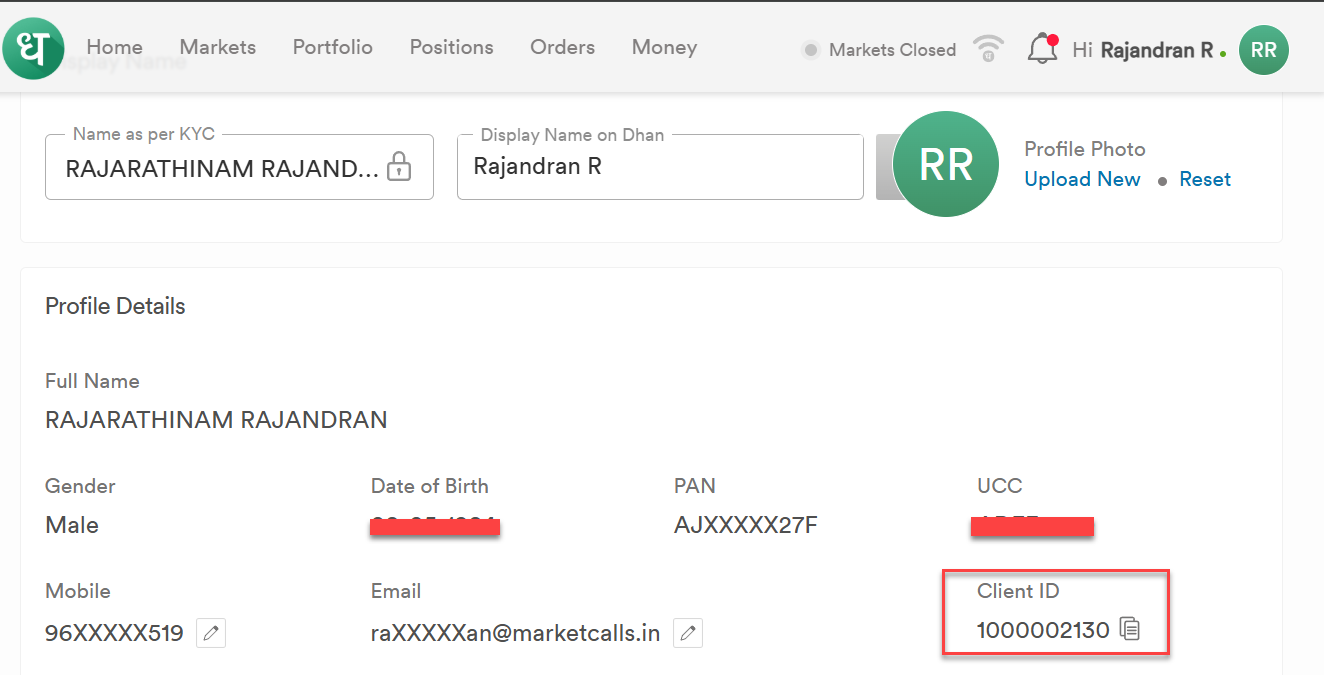

1. From the same profile menu, select “My Profile on Dhan.”
2. Scroll to Profile Details and copy your Client ID.
   This will be used as part of your API credentials.

---

Step 6: Enable TOTP (Mandatory)

• Under Optional Settings - down below the API Key section, click Set-up TOTP.
• Follow the instructions to configure two-factor authentication for API access.
• This is mandatory for all Dhan API users.

---

Step 7: Setup Static IP (Optional / Mandatory from Jan 2026)

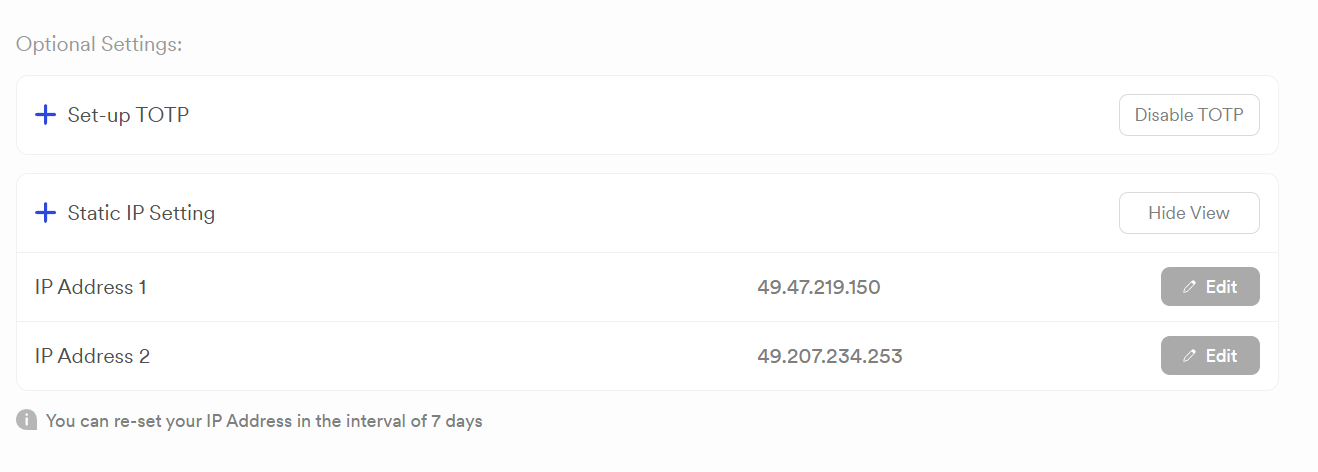

• Click Static IP Setting under Optional Settings.
• Add up to two IP addresses (e.g., your server or office IP).
• You can update these every 7 days.
• From January 2026, setting at least one Static IP will become mandatory.

---

Environment Configuration

Once your credentials are generated, configure them in your .env file:

BROKER_API_KEY = 'your_dhan_clientid:::your_dhan_apikey'
BROKER_API_SECRET = 'your_dhan_apisecret'
REDIRECT_URL = 'http://127.0.0.1:5000/dhan/callback'

---

API Costs Summary

API Type	Description	Cost
Trading APIs	Order, Position, Portfolio, Funds & Report APIs	Free of Cost
Data APIs	Real-time + Historical Data (5 years), Market Depth, Option Chain	₹499/month (or ₹399/month billed yearly)

---

Best Practices

• Keep your API Key, Secret, and Client ID private.
• Do not share credentials with third-party applications.
• Always enable TOTP for added security.
• Use Static IPs when deploying in production environments.
• Daily login to Tradeboard Portal is mandatory.

---

Integrating with DhanHQ APIs unlocks the ability to automate strategies, execute trades, and analyze data directly within your own infrastructure.
When used with Tradeboard, you can self-host and run your entire algo trading stack, with full control and zero vendor lock-in.

---

Supported Exchanges

Tradeboard reads this plugin's exchange list from broker/dhan/plugin.json and serves it to the app, so symbol search, the Strategy Builder and the tools pages only offer what the plugin actually handles.

• Tradable: NSE, BSE, NFO, BFO, CDS, BCD, MCX
• Index feeds: NSE_INDEX, BSE_INDEX
