Tradeboard Architecture ​

Tradeboard is a self-hosted Flask application with a React frontend. Everything runs on your machine: the web UI, the REST API, the WebSocket proxy, the strategy host, and the databases. No trading data leaves your infrastructure.

This page explains how the pieces fit together. For component-level detail, see the Design Documentation.

The Layered View ​

Every client speaks the same Tradeboard API. The service layer holds the business logic, and a broker plugin translates it to whatever the broker actually expects.

┌───────────────┐ ┌───────────────┐ ┌───────────────┐ ┌───────────────┐
│  TradingView  │ │   Amibroker   │ │     Excel     │ │     Python    │
└───────────────┘ └───────────────┘ └───────────────┘ └───────────────┘
        │                 │                 │                 │
        └─────────────────┴─────────────────┴─────────────────┘
                                   │
                                   ▼
┌─────────────────────────────────────────────────────────────────────┐
│        Flask App: blueprints, REST API v1, auth, rate limits        │
│                  CORS, CSP, CSRF, TOTP, audit trail                 │
└──────────────────────────────────┬──────────────────────────────────┘
                                   │
                                   ▼
┌─────────────────────────────────────────────────────────────────────┐
│                            Service Layer                            │
│         orders, data, options, sandbox, calendar, messaging         │
└──────────────────────────────────┬──────────────────────────────────┘
                                   │
                                   ▼
┌─────────────────────────────────────────────────────────────────────┐
│                       Broker Plugin Interface                       │
│            normalised symbols, orders, quotes and streams           │
└──────────────────────────────────┬──────────────────────────────────┘
                                   │
                                   ▼
┌─────────┐ ┌─────────┐ ┌─────────┐ ┌─────────┐ ┌─────────┐ ┌─────────┐
│ Zerodha │ │  Angel  │ │   Dhan  │ │  Fyers  │ │  Upstox │ │   More  │
└─────────┘ └─────────┘ └─────────┘ └─────────┘ └─────────┘ └─────────┘

The point of the plugin boundary is that your strategy never changes when your broker does. Symbols, order types, quotes and streams are normalised on the way down, and broker responses are normalised on the way back up.

Processes and Ports ​

Tradeboard runs as two listeners.

ProcessDefaultPurpose
Flask application127.0.0.1:5000Web UI, REST API v1, webhooks, broker OAuth callbacks
WebSocket proxy127.0.0.1:8765Market data streaming and order updates

Hosted Python strategies run in separate processes, so a strategy that crashes or blocks cannot take the platform down with it.

Request Lifecycle: Placing an Order ​

Whether the signal comes from a TradingView webhook, the Python SDK, an Excel cell, or the built-in terminal, it follows the same path.

┌─────────────────────────────────────────────────────────────────────┐
│           Signal arrives (webhook, SDK, sheet or terminal)          │
└──────────────────────────────────┬──────────────────────────────────┘
                                   │
                                   ▼
┌─────────────────────────────────────────────────────────────────────┐
│             API key check, schema validation, rate limit            │
└──────────────────────────────────┬──────────────────────────────────┘
                                   │
                                   ▼
┌─────────────────────────────────────────────────────────────────────┐
│         Analyzer mode? Yes: sandbox store. No: broker plugin        │
└──────────────────────────────────┬──────────────────────────────────┘
                                   │
                                   ▼
┌─────────────────────────────────────────────────────────────────────┐
│         Broker plugin maps symbol and order to broker format        │
└──────────────────────────────────┬──────────────────────────────────┘
                                   │
                                   ▼
┌─────────────────────────────────────────────────────────────────────┐
│          Order sent, response normalised, order id returned         │
└──────────────────────────────────┬──────────────────────────────────┘
                                   │
                                   ▼
┌─────────────────────────────────────────────────────────────────────┐
│        Event published: Telegram, WhatsApp, logs, PnL update        │
└─────────────────────────────────────────────────────────────────────┘

Two things in that chain are worth calling out.

Analyzer mode is a real fork in the path. When it is on, the order stops at the sandbox store and never reaches the broker, while market prices still come from live broker data. This is what makes it safe to test a strategy end to end. See API Analyzer.

The event bus is how everything else stays in sync. Order placement publishes an event that the Telegram and WhatsApp subscribers, the logging subscriber, the strategy book, and the WebSocket proxy all listen to independently. Adding a notification channel does not mean touching the order path.

Market Data: One Upstream, Many Consumers ​

The WebSocket proxy holds one connection to the broker feed and fans it out to every consumer. Ten strategies watching NIFTY do not open ten broker connections.

┌─────────────────────────────────────────────────────────────────────┐
│          Broker market data feed (one upstream connection)          │
└──────────────────────────────────┬──────────────────────────────────┘
                                   │
                                   ▼
┌─────────────────────────────────────────────────────────────────────┐
│                     WebSocket Proxy on port 8765                    │
│             adapter, connection manager, broadcast layer            │
└───────┬─────────────────┬─────────────────┬─────────────────┬───────┘
        │                 │                 │                 │
        ▼                 ▼                 ▼                 ▼
┌───────────────┐ ┌───────────────┐ ┌───────────────┐ ┌───────────────┐
│     Excel     │ │     Python    │ │    Browser    │ │      Flow     │
└───────────────┘ └───────────────┘ └───────────────┘ └───────────────┘

Each consumer subscribes to the symbols and mode it wants (LTP, quote, or depth). The proxy handles broker-specific adapter logic, reconnection, and subscription bookkeeping, so consumers see one protocol regardless of broker. See WebSockets.

Code Layout ​

DirectoryResponsibility
blueprints/Flask route modules, one per feature area, roughly 60 of them
restx_api/The versioned REST API surface and its request schemas
services/Business logic, around 80 modules, shared by the API and the UI
broker/36 broker plugins, each with its own api/ and mapping/
websocket_proxy/Streaming server, broker adapters, connection manager
database/SQLAlchemy models and per-domain data access
sandbox/Analyzer mode: simulated execution, margin, positions
events/, subscribers/In-process event bus and its listeners
strategies/, portfolio/, sip/Strategy hosting, portfolio and SIP backtesting
mcp/Model Context Protocol server for AI agents
frontend/React and Vite single page application
utils/Shared helpers, HTTP connection pooling, constants

The restx_api/ schemas are the contract. They validate every incoming request and reject unknown fields, so a malformed payload fails fast with a clear message rather than reaching a broker.

Data Stores ​

Tradeboard splits its data across several SQLite databases so that heavy write paths do not contend with trading data, plus DuckDB for historical bars.

StoreHolds
db/tradeboard.dbUsers, API keys, broker auth, symbols, strategies, settings
db/latency.dbOrder round-trip timings
db/logs.dbTraffic logs: request metadata, status, duration
db/sandbox.dbAnalyzer mode orders, positions, and funds
db/health.dbSystem health monitoring
DuckDB (Historify)Historical OHLCV bars, stored columnar for fast range queries

Security Boundaries ​

LayerControl
Session loginTOTP two-factor, rate-limited login attempts
API requestsAPI key resolved server-side, never a broker token from the client
Key storageArgon2 hashing plus a separately encrypted retrieval copy
BrowserCORS policy, CSP headers, CSRF tokens
ThroughputPer-endpoint rate limits, defaulting to 50 requests per second overall and 10 per second for orders
StrategiesHosted scripts run in isolated processes
AuditFull request and order audit trail

Broker credentials never reach the client. A strategy holds an Tradeboard API key, and the server resolves that to the active broker session, so revoking a key does not require touching your broker account. See Security.

Hosting Topologies ​

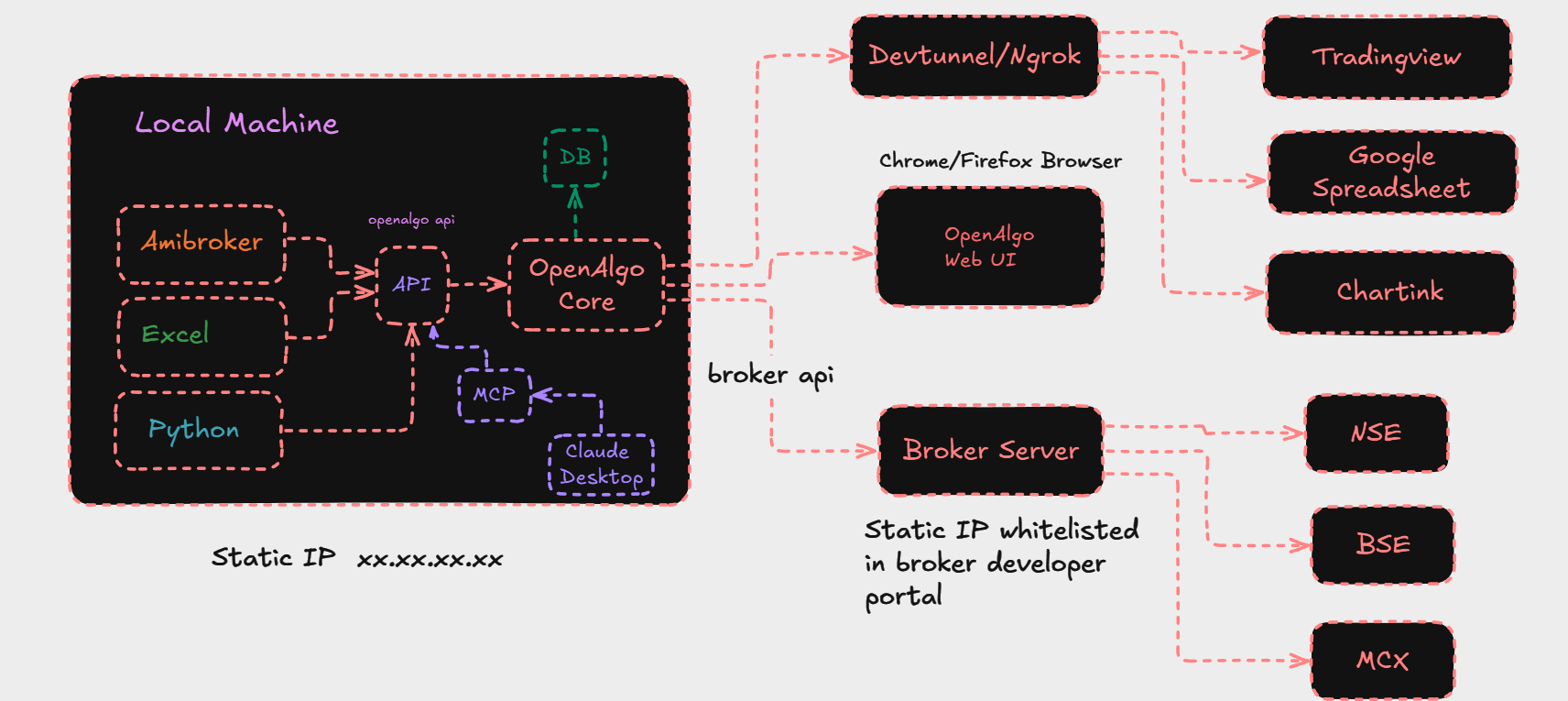

Windows and Mac Hosting Architecture ​

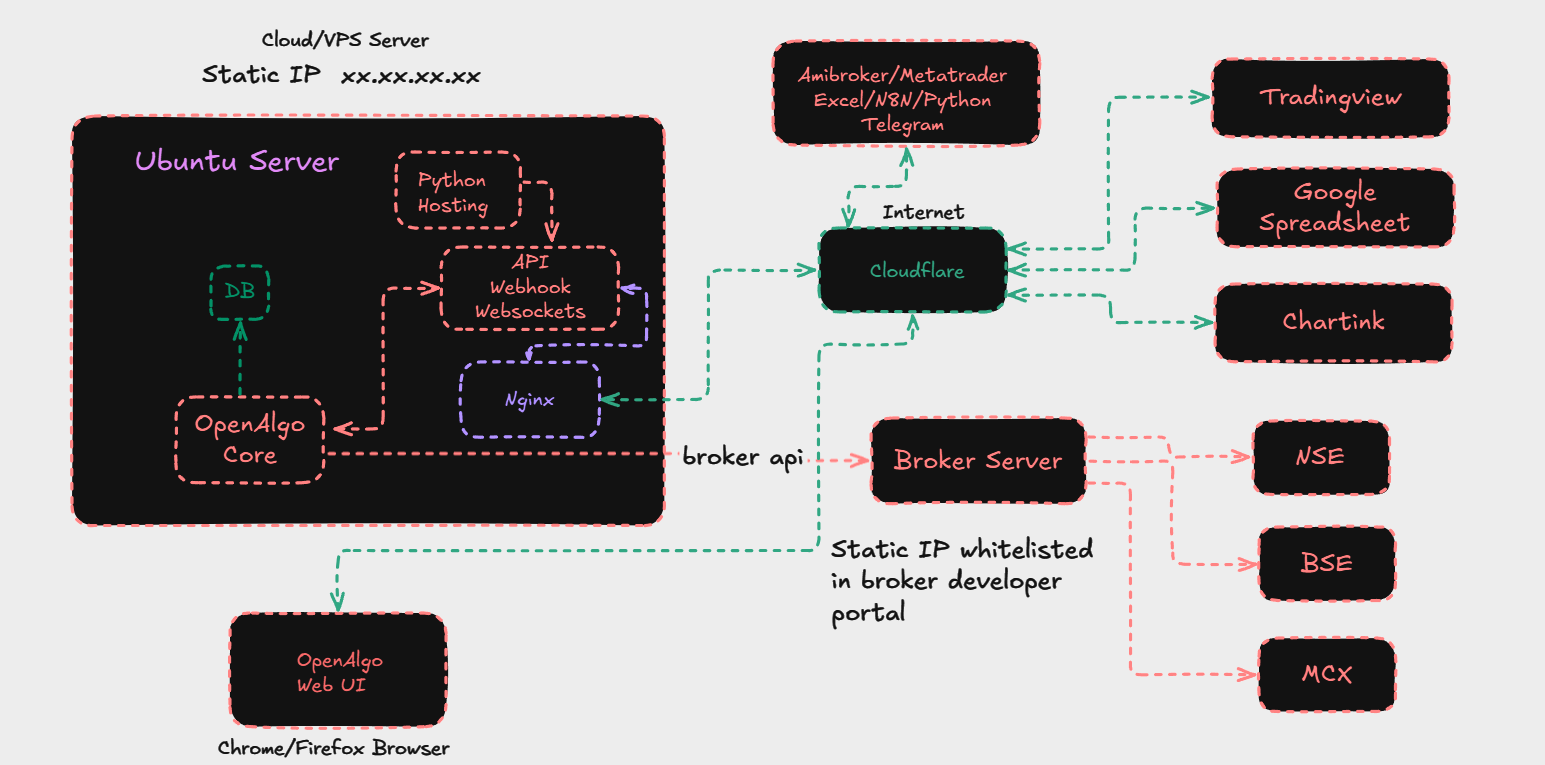

Linux Server Hosting Architecture ​

A local install is the simplest and keeps everything on your desktop. A server install suits strategies that must run when your desktop does not. A public deployment still requires you to configure TLS, a reverse proxy, firewall rules, secrets, and an update process correctly. See Getting Started.
