Latency ​

Overview ​

This document provides a comprehensive guide to understanding, measuring, and optimizing latency in Tradeboard. After extensive performance engineering, we've reduced platform overhead by 95% (from 117ms to 5-10ms), making Tradeboard one of the fastest retail algo trading platforms available.

Latency Concepts ​

Three Types of Latency ​

1. Platform Latency (Internal Processing)

Definition: Time spent processing within Tradeboard, excluding broker API calls.

Formula:

Platform Latency = Total Time - Broker API Time - Network Overhead
                 = Validation + Authentication + Processing + Logging

Components:

  • API key verification (cached): ~1ms
  • Request validation: ~1-2ms
  • Symbol lookup (cached): ~0.5ms
  • Response formatting: ~1ms
  • Async logging: ~1-2ms

Target: < 10ms Current Performance: 5-10ms

2. Broker API Latency (External Processing)

Definition: Time spent communicating with and waiting for the broker's servers.

Formula:

Broker API Latency = Network RTT + Broker Processing
                   = (Client → Broker) + Processing + (Broker → Client)

Components:

  • Network latency (one-way): ~20-40ms
  • Broker order validation: ~5-10ms
  • Exchange submission: ~10-20ms
  • Network latency (return): ~20-40ms

Typical Range: 50-80ms Cannot be optimized by Tradeboard (external dependency)

3. Total Client Roundtrip (End-to-End)

Definition: Complete time from client request to client receiving response.

Formula:

Total Client RTT = Network (Client → Tradeboard) +
                   Flask Framework Overhead +
                   Platform Latency +
                   Broker API Latency +
                   Network (Tradeboard → Client)

Breakdown Example:

Client → Tradeboard network:     ~20-25ms
Flask request parsing:         ~10-15ms
Platform processing:            ~6ms
Broker API call:               ~60ms
Flask response formatting:      ~5ms
Tradeboard → Client network:     ~20-25ms
────────────────────────────────────────
Total:                         ~125-145ms

Measurement Methodology ​

How Tradeboard Measures Latency ​

Tradeboard uses high-precision timestamps to track latency at multiple points:

python
# Simplified example of latency tracking
import time

# Request starts
request_start = time.time()

# Validation phase
validation_start = time.time()
validate_order_data(data)
validation_latency = (time.time() - validation_start) * 1000  # Convert to ms

# Broker API call
broker_start = time.time()
response = broker_api.place_order(data, auth_token)
broker_latency = (time.time() - broker_start) * 1000

# Response formatting
response_start = time.time()
formatted_response = format_response(response)
response_latency = (time.time() - response_start) * 1000

# Total time
total_latency = (time.time() - request_start) * 1000

# Calculate platform overhead
platform_overhead = total_latency - broker_latency

What Gets Stored in the Database ​

The order_latency table stores comprehensive metrics:

sql
CREATE TABLE order_latency (
    id INTEGER PRIMARY KEY,
    order_id TEXT,
    broker TEXT,
    symbol TEXT,
    order_type TEXT,  -- PLACE, MODIFY, CANCEL, etc.
    rtt_ms REAL,      -- Broker API roundtrip time
    validation_latency_ms REAL,
    response_latency_ms REAL,
    overhead_ms REAL,  -- Platform processing overhead
    total_latency_ms REAL,
    status TEXT,
    timestamp DATETIME
);

Calculation Formulas Used in Code ​

python
# 1. Platform Overhead
overhead_ms = validation_latency_ms + response_latency_ms + other_processing_ms

# 2. Total Latency
total_latency_ms = rtt_ms + overhead_ms

# 3. One-way Broker Latency (estimate)
one_way_latency = rtt_ms / 2

# 4. Client RTT (what Bruno/Postman measures)
client_rtt ≈ total_latency_ms + network_overhead + flask_overhead
           ≈ total_latency_ms + 35-50ms

Performance Metrics ​

Current Performance (Post-Optimization) ​

Live Mode

┌─────────────────────────────────────┐
│ Metric              │ Before│ After │
├─────────────────────┼───────┼───────┤
│ API Key Verify      │ 90ms  │  1ms  │
│ Symbol Lookup       │ 10ms  │  1ms  │
│ Validation          │  5ms  │  2ms  │
│ Response Format     │  5ms  │  1ms  │
│ SocketIO Emit       │ 15ms  │  0ms* │
│ Logging             │  7ms  │  0ms* │
├─────────────────────┼───────┼───────┤
│ Platform Overhead   │ 117ms │  6ms  │
│ Broker API          │ 57ms  │ 60ms  │
├─────────────────────┼───────┼───────┤
│ Total Latency       │ 174ms │ 66ms  │
│ Bruno/Postman       │ 249ms │ 140ms │
└─────────────────────────────────────┘
* = Moved to async (non-blocking)

Improvement: 95% reduction in platform overhead

Sandbox/Analyze Mode

┌─────────────────────────────────────┐
│ Metric              │ Before│ After │
├─────────────────────┼───────┼───────┤
│ API Key Verify      │ 90ms  │  1ms  │
│ Symbol Lookup       │ 10ms  │  1ms  │
│ Position Queries    │ 30ms  │  5ms  │
│ Validation          │  5ms  │  2ms  │
├─────────────────────┼───────┼───────┤
│ Platform Overhead   │ 107ms │ 10ms  │
│ Quote API           │ 52ms  │ 55ms  │
├─────────────────────┼───────┼───────┤
│ Total Latency       │ 159ms │ 65ms  │
└─────────────────────────────────────┘

Improvement: 90% reduction in platform overhead

Performance by Order Type ​

Order TypePlatform OverheadBroker APITotal
PLACE5-8ms50-70ms60-75ms
MODIFY5-7ms40-60ms50-65ms
CANCEL4-6ms30-50ms40-55ms
SMART6-9ms50-70ms60-80ms
BASKET7-10ms per order50-70ms60-80ms

Optimization Details ​

1. API Key Verification Caching ​

Problem: Argon2 verification taking 20-50ms per key, multiplied by number of keys.

Solution:

python
# Two-tier cache system
verified_api_key_cache = TTLCache(maxsize=1024, ttl=3600)    # 1 hour for valid keys
invalid_api_key_cache = TTLCache(maxsize=512, ttl=300)       # 5 min for invalid keys

def verify_api_key(provided_api_key):
    cache_key = hashlib.sha256(provided_api_key.encode()).hexdigest()

    # Fast rejection
    if cache_key in invalid_api_key_cache:
        return None

    # Fast authentication
    if cache_key in verified_api_key_cache:
        return verified_api_key_cache[cache_key]

    # Full verification (only on cache miss)
    # ... Argon2 verification logic ...

Security Maintained:

  • SHA256 hashing prevents plaintext storage
  • TTL ensures credentials expire
  • Cache invalidated on key changes
  • Invalid keys cached separately

Performance Gain: 90-100ms → 1ms (99% improvement)

2. Symbol Lookup Caching ​

Problem: Database query on every order for symbol validation.

Solution:

python
symbol_cache = TTLCache(maxsize=10000, ttl=1800)  # 30 minutes

def get_symbol_cached(symbol, exchange):
    cache_key = f"{symbol}:{exchange}"

    if cache_key in symbol_cache:
        return symbol_cache[cache_key]

    symbol_obj = SymToken.query.filter_by(
        symbol=symbol,
        exchange=exchange
    ).first()

    symbol_cache[cache_key] = symbol_obj
    return symbol_obj

Rationale: Symbols rarely change during trading hours.

Performance Gain: 5-10ms → 0.5ms (90% improvement)

3. Request-Level Position Caching ​

Problem: Same position queried 4-5 times in a single order flow.

Solution:

python
class OrderManager:
    def __init__(self, user_id):
        self._position_cache = {}  # Request-level cache

    def _get_position_cached(self, symbol, exchange, product):
        cache_key = f"{symbol}:{exchange}:{product}"

        if cache_key in self._position_cache:
            return self._position_cache[cache_key]

        position = SandboxPositions.query.filter_by(...).first()
        self._position_cache[cache_key] = position
        return position

Scope: Cache cleared after each request.

Performance Gain: 20-30ms saved per order (eliminated 3-4 redundant queries)

4. Asynchronous SocketIO Emissions ​

Problem: Main thread blocked while broadcasting to WebSocket clients.

Solution:

python
# Before (blocking)
socketio.emit('order_event', {...})

# After (non-blocking)
socketio.start_background_task(
    socketio.emit,
    'order_event',
    {...}
)

Performance Gain: 10-20ms (main thread no longer waits)

5. Async Logging and Alerts ​

Problem: Database logging and Telegram alerts blocking order response.

Solution:

python
# Logging moved to thread pool
executor.submit(async_log_order, 'placeorder', request_data, response_data)

# Telegram alerts already async
telegram_alert_service.send_order_alert(...)

Performance Gain: 5-10ms (operations run in background)

Monitoring and Troubleshooting ​

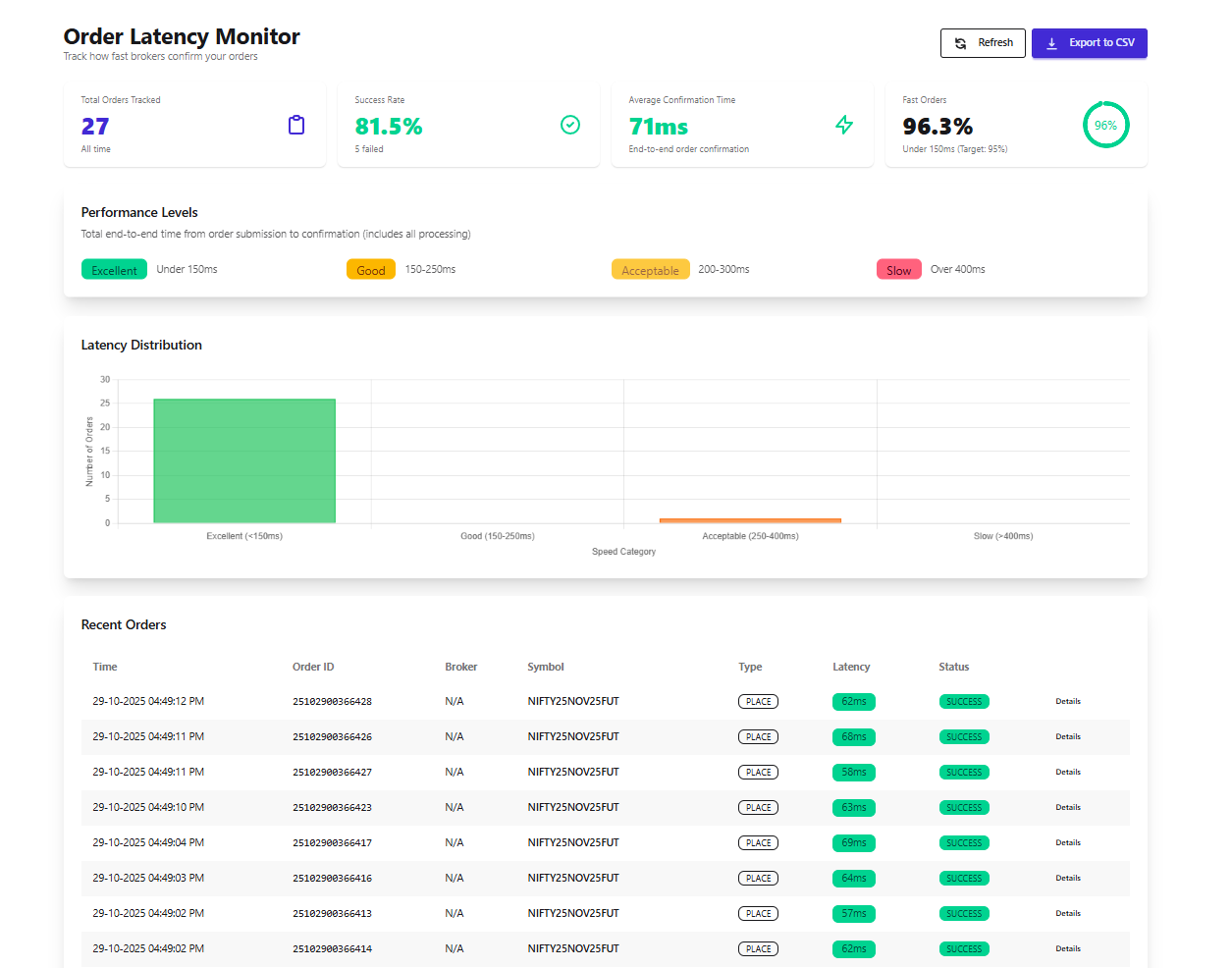

Using the Latency Dashboard ​

Navigate to /latency in your Tradeboard instance:

Features:

  1. Real-time order latency tracking
    • Last 100 orders with detailed breakdown
    • Color-coded performance indicators
  2. Performance metrics
    • Average RTT (broker API time)
    • Success rate
    • SLA compliance (% orders under 150ms)

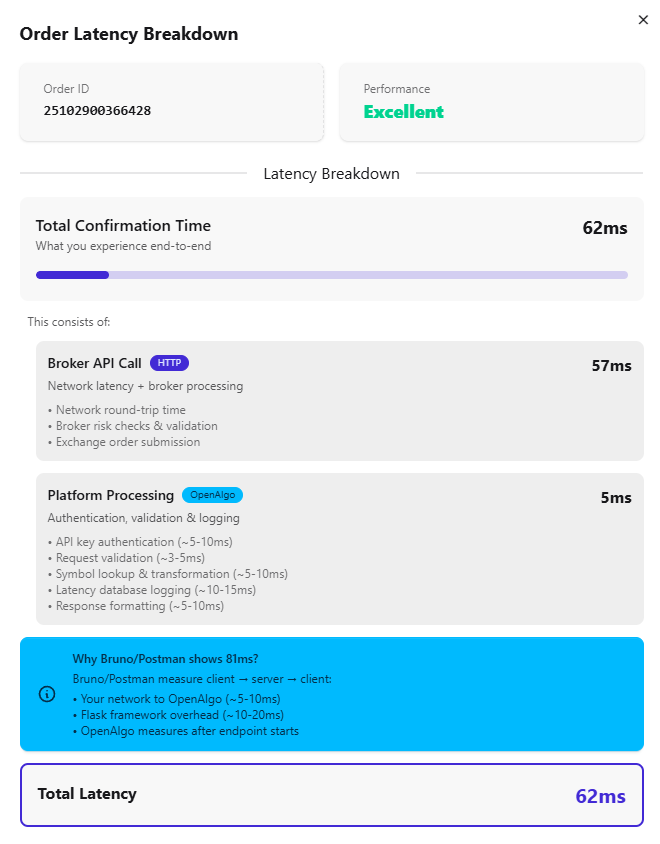

  3. Detailed breakdown modal
    • Click any order to see full latency breakdown
    • Platform overhead vs broker API time
    • Validation, response, and overhead metrics

Performance Indicators ​

Green  (< 150ms):  Excellent - HFT-capable latency
Yellow (< 250ms):  Good - Suitable for scalping/arbitrage
Orange (< 400ms):  Acceptable - Fine for MFT/LFT
Red    (> 400ms):  Poor - Investigate immediately

Troubleshooting High Latency ​

If Platform Overhead > 15ms:

  1. Check cache hit rates

    python
    # Add logging to see cache performance
logger.info(f"Cache hit: {cache_key in verified_api_key_cache}")

  2. Look for database query issues

    sql
    -- Check for slow queries
EXPLAIN QUERY PLAN SELECT * FROM symtoken WHERE symbol=? AND exchange=?;

  3. Profile specific endpoints

    python
    import cProfile
cProfile.run('place_order(order_data)')

If Broker API > 100ms:

  1. Check server location

    • Mumbai servers should see 50-70ms
    • Other locations may see 80-120ms

  2. Test broker connectivity

    bash
    ping broker-api-endpoint.com
traceroute broker-api-endpoint.com

  3. Check broker API status

    • Look for broker-side slowdowns
    • Verify API rate limits not exceeded

If Client RTT >> Total Latency:

  1. Network issues between client and Tradeboard

    bash
    ping your-tradeboard-server.com

  2. Flask server overloaded

    • Check CPU/memory usage
    • Consider scaling up

  3. TLS/SSL handshake overhead

    • Use keep-alive connections
    • Enable HTTP/2

Best Practices ​

For Optimal Performance ​

  1. Host close to broker infrastructure

    • Mumbai for Indian brokers
    • Singapore for some international brokers

  2. Use adequate server resources

    • Minimum: 2 cores, 4GB RAM
    • Recommended: 4 cores, 8GB RAM for production

  3. Enable caching appropriately

    python
    # Verify cachetools is installed
pip install cachetools

  4. Monitor cache sizes

    python
    logger.info(f"Symbol cache size: {len(symbol_cache)}")
logger.info(f"API key cache size: {len(verified_api_key_cache)}")

  5. Use connection pooling for databases

    • Already configured for PostgreSQL
    • SQLite uses NullPool (appropriate for file-based DB)

For Development ​

  1. Don't use ngrok for latency testing

    • Adds 500-700ms of overhead
    • Fine for development, not performance measurement

  2. Test with realistic data

    • Use actual symbols and exchanges
    • Test during market hours for realistic broker latency

  3. Profile before optimizing

    python
    import time

start = time.perf_counter()
# Your code here
duration = (time.perf_counter() - start) * 1000
print(f"Operation took {duration:.2f}ms")

  4. Use the latency dashboard

    • Check after each optimization
    • Compare before/after metrics

For Trading Strategies ​

  1. Know your strategy's latency requirements
    • HFT: < 10ms (needs co-location)
    • Scalping: < 100ms (Tradeboard is suitable)
    • MFT: < 200ms (Tradeboard is excellent)
    • LFT: < 1000ms (Tradeboard is more than sufficient)
  2. Focus on strategy logic, not micro-optimization
    • 50ms vs 60ms rarely matters for retail strategies
    • Strategy robustness matters more
  3. Test under realistic conditions
    • Market hours have different latency than off-hours
    • High volatility affects broker processing time

Formula Reference ​

Quick Reference ​

Platform Latency = Total - Broker API - Network
Broker API Latency = Network RTT + Processing
Client RTT = Network + Flask + Platform + Broker + Network

Total Latency = Platform Overhead + Broker API
Client RTT ≈ Total Latency + 40-60ms

One-way Network Latency ≈ (Client RTT - Total Latency) / 2

Estimation Formulas ​

python
# Estimate broker one-way latency
broker_one_way = broker_api_latency / 2

# Estimate network overhead
network_overhead = client_rtt - total_latency

# Estimate Flask framework overhead
flask_overhead = network_overhead - (2 * avg_network_latency)

# SLA calculation
orders_under_150ms = count(total_latency < 150)
sla_percentage = (orders_under_150ms / total_orders) * 100

Conclusion ​

With 95% reduction in platform overhead, Tradeboard's latency is now limited by external factors:

  1. Broker API response time (50-80ms) - Primary bottleneck
  2. Network latency (20-40ms each way) - Geography-dependent
  3. Platform processing (5-10ms) - Optimized

For retail and institutional traders running MFT/LFT strategies, this performance is more than adequate. Focus on strategy development, risk management, and execution consistency rather than chasing microseconds.

Remember: The fastest trade isn't always the most profitable one. Strategy quality matters far more than latency for 99% of traders.
